Overview

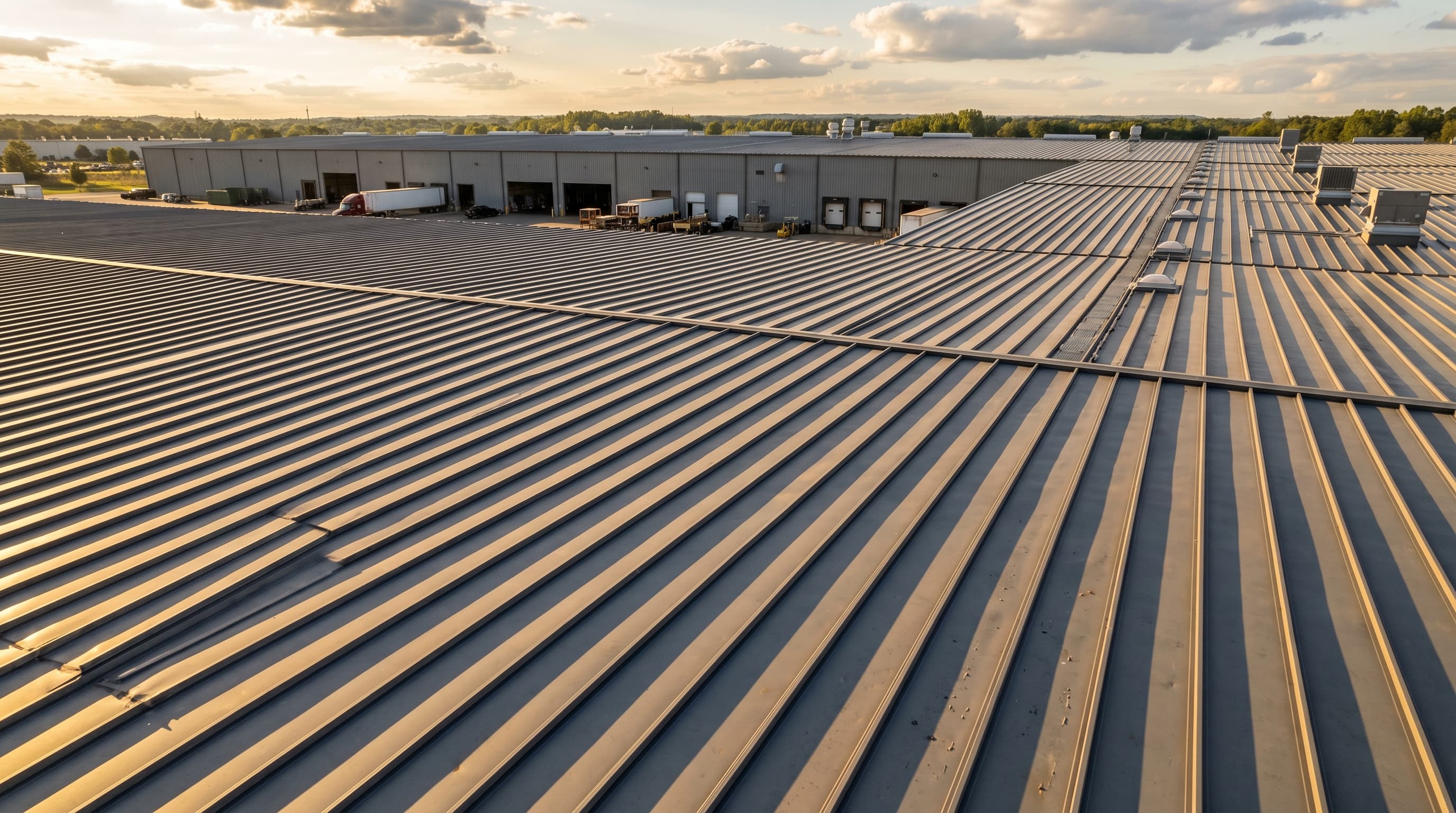

Standing seam metal roofing uses concealed fasteners and raised seams to create a continuous, waterproof panel system. The concealed clip attachment allows thermal expansion and contraction without stressing the metal, preventing oil-canning and long-term fastener pull-out. Evangel installs standing seam on low- to steep-slope commercial applications including manufacturing facilities, retail, multifamily, and institutional buildings. Steel and aluminum panel options are available depending on coastal exposure and budget.
Key Benefits
- Concealed fastener system — no exposed screws to back out or corrode
- Allows thermal movement without membrane stress or fastener fatigue
- Exceptional wind uplift resistance — suitable for high-wind regions
- Metal roofing is 100% recyclable at end of service life
- Pairs with standing seam solar clamps for PV installation without roof penetrations
- Available in steel (Galvalume/Galvanized) and aluminum for coastal environments
Best Suited For
Manufacturing facilities, retail with architectural requirements, multifamily complexes, institutional buildings, and any sloped commercial roof needing premium longevity.
Technical Specifications
- Panel Material
- Galvalume steel or aluminum
- Gauge
- 22 – 26 gauge (project-dependent)
- Minimum Slope
- ¼:12 to ½:12 (system-dependent)
- Seam Height
- 1.5 in – 2 in typical
- Coating Options
- PVDF (Kynar), SMP, polyester
- Warranty Options
- 30 – 40 years paint; 40+ years substrate
Need a Standing Seam Metal estimate?
Evangel provides free on-site assessments for qualified commercial properties within 150 miles of Kansas City.
